Portable 3D Scanner Rental

Professional Metrology-Grade 3D Scanners

At Las Vegas 3D Scanning, we exclusively specialize in renting portable, handheld Creaform 3D scanning machines, offering cutting-edge technology for various applications, ensuring flexibility and precision for all your scanning needs.

3D Scanner Specialists

When Accuracy Meets Versatility and Portability

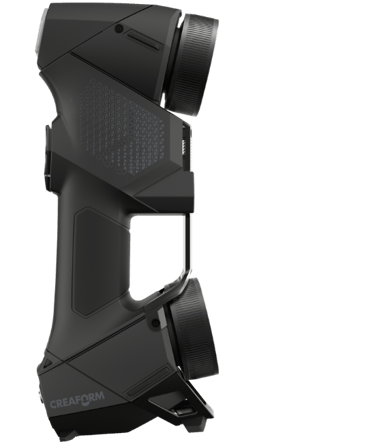

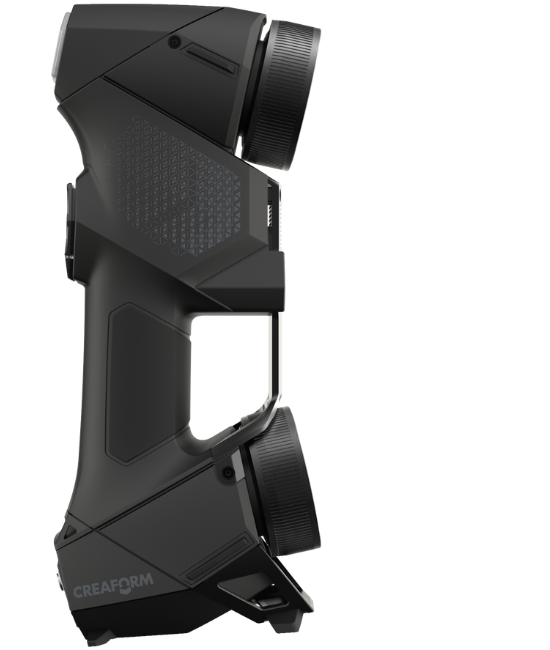

Optimized to meet the needs of design, manufacturing, and metrology professionals, the HandySCAN 3D|BLACK Elite is the premier 3D scanner for accurately and reliably measuring parts of any size, material, or complexity. It delivers results within seconds, anywhere.

Accuracy of 0.025mm

ISO 17025

Large Scanning Area

Scan-to-Mesh in Seconds

Accurate, Reliable & High-Resolution 3D Measurements

The HandySCAN 3D|BLACK|Elite delivers accurate, high-resolution, and repeatable results, regardless of the measurement setup and user experience level. With its high volumetric accuracy, the BLACK Elite accurately scans parts of all sizes, from small to large, making it ideal for various applications.

Accuracy

• 0.025 mm (0.0009 in)

Volumetric accuracy

• 0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)

Reliable acceptance test

• Based on VDI/VDE 2634 part 3 standard

• Based on ISO 10360 standard

• ISO/IEC 17025: 2017 accredited laboratory

High resolution for fine details

Integrated photogrammetry

• High accuracy on large measurements with volumetric accuracy optimization

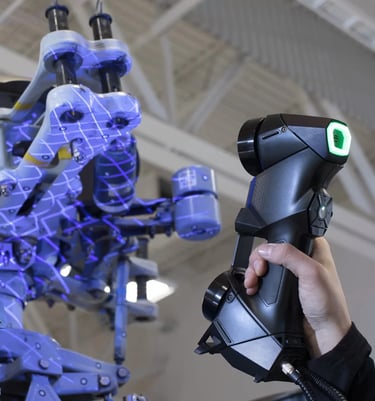

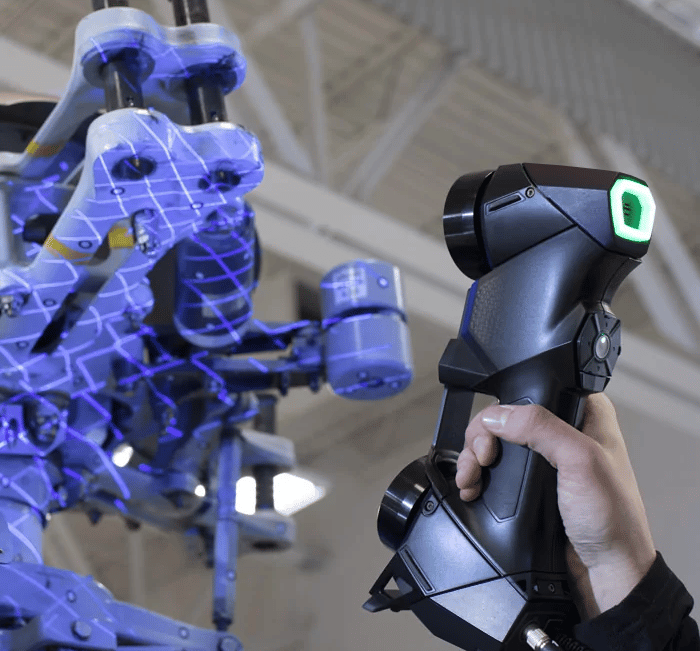

Portability

This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.

Lightweight

Self-positioning with dynamic referencing

Fits into a suitcase

Take it anywhere you need

Faster 3D Scanning Process

The HandySCAN 3D|BLACK Series supports automatic mesh generation, streamlining the workflow from setup to scan to mesh. Its Flex Volume feature also allows for rapid, high-quality measurements of large parts from a distance and precise scanning of smaller parts at a closer range.

Flexible working distance

200 to 750 mm (7.9 x 29.5 in) for faster acquisition

High measurement rate

Up to 1,800,000 measurements/s

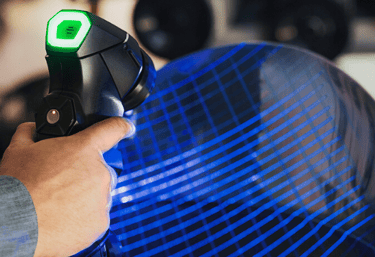

Large scanning area of 30 blue laser lines

Quick setup

Up-and-running in less than 2 minutes

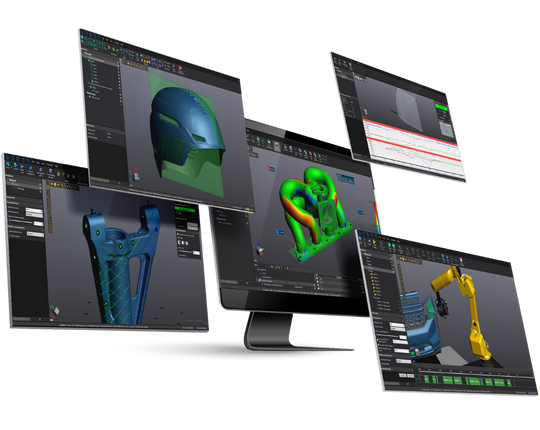

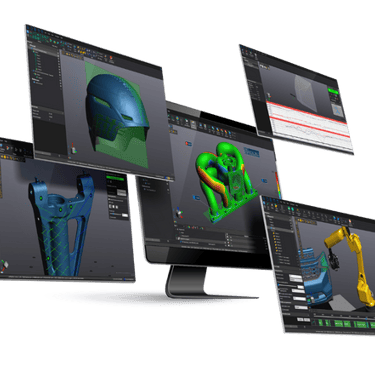

All our Creaform 3D scanner rentals come with a high-performance laptop loaded with Creafrom VXelements Software. It combines all the essential tools you need, from data acquisition to CAD Software, in a user-friendly, simplified, and sleek working environment.

Scanner Software
